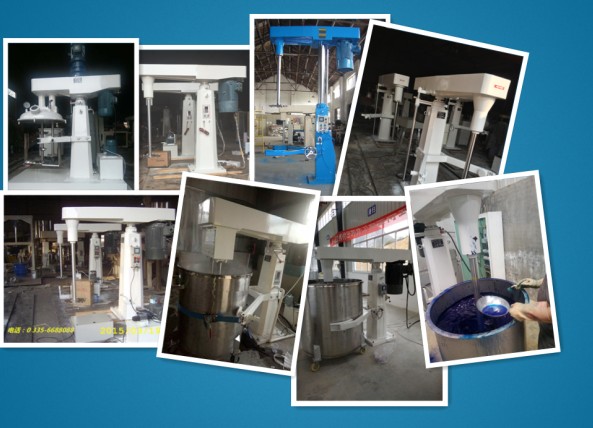

高速分散機

·主要特點  Features

本機采用變頻調速，液壓或氣動升降、防爆無泄漏。生產連續性強，分散效果好，安裝簡便。

The machine adopts variable frequency speed regulation, hydraulic or pneumatic lifting, explosion proof and no leakage. It has strong continuity, good dispersion effect and easy installation.

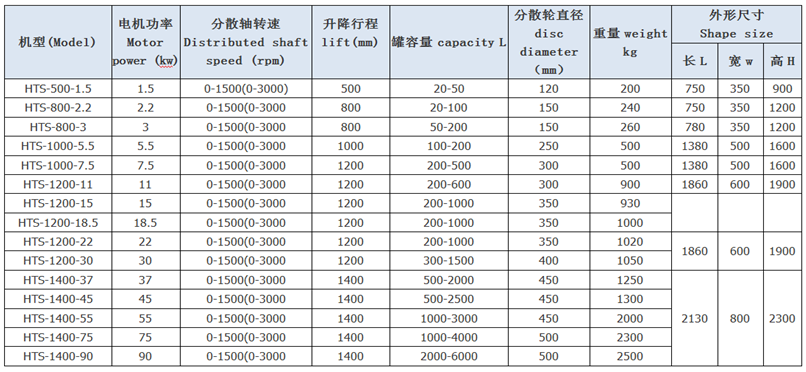

 技術參數：

應用范圍Application scope

高速分散機適用于兩種或多種液體和粉體狀物料進行攪拌、溶解和分散?？梢詥为?dú)適用生產，也可以配套各種砂磨機連續生產。通過分散盤的高速運轉，使物料呈環狀流，產生強旋渦，呈螺旋狀下降到渦流底部。粒子間產生強烈的剪切撞擊與磨擦，達到迅速分散、溶解、均勻混合的功能。通過控制油泵工作帶動液壓機架升降，液壓機架帶動整個傳動機構和工作組升降。

High speed dispersing machine is suitable for mixing, dissolving and dispersing two or more liquid and powder materials. It can be used for production alone, or can be matched with a variety of sand grinder continuous production through the high-speed operation of the dispersing disk, so that the material is circular flow, producing a strong vortex, spiral down to the bottom of the vortex. Strong shear collision and friction occur between particles, which can disperse rapidly, dissolve and mix evenly. By controlling the work of the oil pump to drive the hydraulic press frame lifting, hydraulic press frame to drive the whole transmission mechanism and working group lifting.

l  電機功率：從7.5kw～90kw；

l  速度要求： 1、 速度類型：單速，雙速，無級變速，有級變速 2、 變速方式：電磁、變頻器、減速器。

l  分散盤型式：平盤鋸齒式、三義槳式、碟式、其它形式；

l  電機電器：普通型、防爆型、特殊要求
